A brief overview of Jigs and Fixtures:

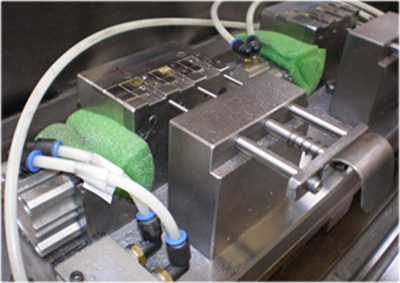

A fixture can be designed and made to align or hold a component or components  in a repeatable position. This is especially important during the assembly or  a manufacturing process.

While a jig is equally as important, to say hold a component in a fixed position for repeatedly drilling holes in the same place  or welding two parts of a finished component together. Both processes greatly reduce the risk of operator error  and of component error. If the component is the wrong shape, it won’t fit into either Fixture or Jig and therefore reduces scrap and increases productivity.



Please call 01264 334410 or info@samarprecisioneng.co.uk to talk through your needs and ideas.
